| Video Memory Specifications | ||
| Memory Size | 6GB | |
| Memory Type | GDDR6 | |
| Resolution | 7680 x 4320 | |
| Core Clock | Core Clock: 2000 MHz Engine Clock: Boost 2450 MHz |
|
| BUS Type | PCI Express4.0 x8 | |
| INTERFACE | 96-bit | |
| Memory Clock | 16 Gbps effective | |
| Interface | ||
| Display Port | 2 x DisplayPort 2.0 | |
| HDMI | 1 x HDMI 2.1 | |
| HDCP | Yes | |
| Power Specifications | ||
| Connector Type | 1 x 8-pin | |
| Recommend PSU | 450W | |
| Consumption | 105W | |
| Display Option | ||
| Multi Display | 3 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate (12_2) | |
| Physical Specifications | ||
| Dimensions | 240mm x 112mm x 37mm | |
| WARRANTY INFORMATION | ||
| Warranty | 1 Year | |

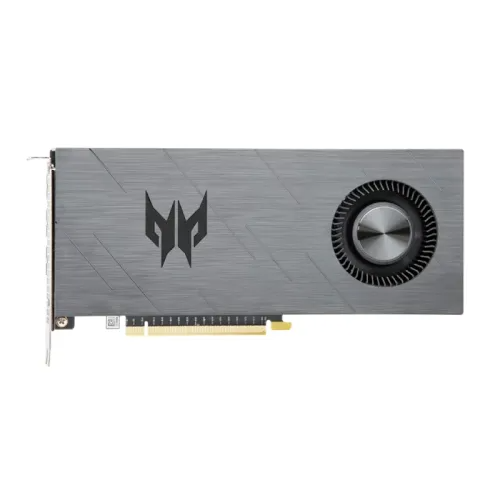

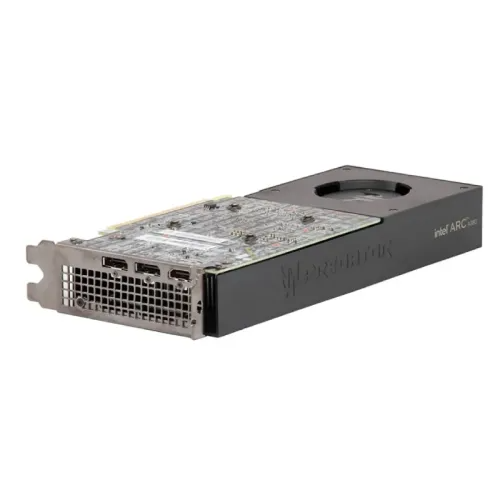

Acer Predator Arc A380 6GB GDDR6 Graphics Card
The Acer Predator Arc A380 6GB Graphics Card has eight Xe cores, six gigabytes of GDDR6 RAM, and eight ray tracing units with a 2000MHz clock. The card supports DirectX 12 Ultimate. It was created using a 6 nm manufacturing process and is based on the DG2-128 graphics processor in its ACM-G10 form. As a result, Arc A380 will be able to run all current games. In addition, the DirectX 12 Ultimate capability ensures that subsequent video games will include hardware raytracing, variable-rate shading, and other features. In addition to 64 texture mapping units and 32 ROPs, it has 1024 shading units. Eight raytracing acceleration cores are also on the board. Using a 96-bit memory interface, Intel has paired the Arc A380 with 6 GB of GDDR6 memory. The GPU runs at 2000 MHz and may be clocked up to 2450 MHz, while the memory operates at 1937 MHz (16 Gbps effective). The Intel Arc A380 is a dual-slot card that uses one 8-pin power connector for power, with a maximum power draw of 75 W. Two DisplayPort 2.0 and one HDMI 2.1 output are available for displays. The PCI-Express 4.0 x8 interface between Arc A380 and the rest of the system is used for this connection.
