| Key Feature | ||
| Certification | 80 PLUS Platinum | |
| Efficiency (Approx.) | 93% Typically |
|
| Fan Size | 135mm | |
| Frequency | 60 - 50Hz | |
| MTBF | >100,000 Hours | |
| Output | ||
| Voltage | 100-240Vac | |
| Power | 1200W | |
| Connectors | ||
| Connector | M/B 20+4 Pin Connector x 1| CPU 4+4 Pin x 2| PCI-e 6+2 Pin x 12| SATA x 12| 4 Pin Peripheral x 9| 4 Pin Floppy x 1 | |
| Input | ||
| Current | 15 - 7.5A | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 05 Years Warranty. | |
●︎ Fully modular cable design for easy installation and cable management
●︎ 100% high quality Japanese electrolytic & solid capacitors ensure performance and reliability
●︎ 135mm FDB silent fan default as hybrid mode, equipped with a hybrid fan controller, easily switch mode (auto/hybrid) by the controller
●︎ Zero dBA fanless mode silent operation
●︎ 80 PLUS Platinum certified: up to 93% efficiency @ 50% load
●︎ Powerful single +12V rail, capable of delivering up to 100A
●︎ Excellent output voltage stability ensures total voltage regulation under 1% (even better than DSP)
●︎ Twelve PCI-E 6+2pin connectors for 4 way SLI & high-end solution builds.
**5 years warranty.

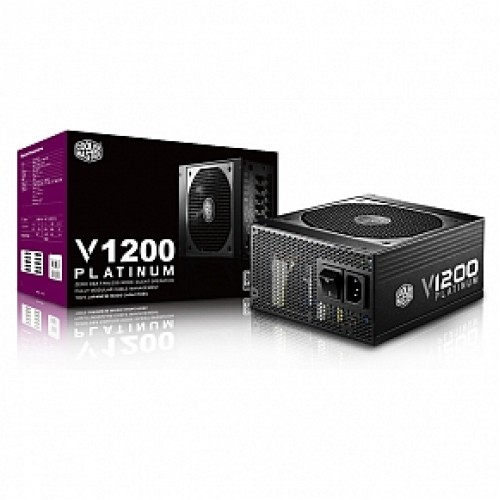

1200W Platinum Power Supply – V1200
Cooler Master developed the V-series to re-ascertain its position as the world's top power supply brand and the reviewers agreed! Based on the highest graded components (DC-DC module design, 100% Japanese capacitors) it features outstanding efficiency, excellent hold-up times, voltage stability, and ripple suppression. And thanks to high-quality FDB fans, V1200 Platinum PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all-black, extra slim flat-ribbon cables. This makes cable management a breeze and results in elegant-looking clean builds with the best possible airflow.
