| Case Features | ||
| Case Type | Middle Tower | |
| Cooling System | Rear: 120 x 120 x 25 mm fan Front :140 x 140 x 25 mm fan 2.5” x 2 or 3.5”x 2 (HDD Rack) 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket) |
|
| Expansion Slots | 8 | |
| Fan Support | Front:3 x 120mm, 3 x 140mm, 2 x 200mm Top:3 x 120mm, 2 x 140mm, 2 x 200mm Rear:1 x 120mm |
|
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 | |
| Motherboard Support | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) | |
| Others | CPU cooler height limitation: 172mm VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) PSU length limitation: 220mm |
|
| PSU | Standard PS2 PSU (optional) | |
| Radiator Support | Front:1 x 360mm, 1 x 420mm Top:1 x 280mm, 1 x 360mm Rear:1 x 120mm Right:1 x 360mm (Without HDD Rack) |
|
| Side Panel | 4mm Tempered Glass x 1(Left) | |
| Physical Specification | ||
| Dimensions | 565 x 240 x 500 mm | |
| Materials | SPCC | |
| Weight | 15.04 kg | |
| Physical Specifications | ||
| Color | Exterior & Interior : Black | |

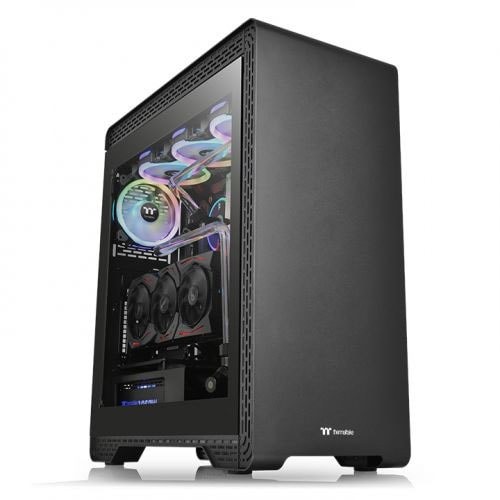

The THERMALTAKE S500 TG has outstanding expandability. It can support a CPU cooler with a maximum height of 172mm, dual expansion slot VGA of up to 400mm in length without an HDD rack, and a power supply with a length of up to 220mm. Optimized for excellent cooling capability with one 140mm exhaust front fan and one 120mm rear fan preinstalled, S500 TG Case is able to house up to three 140mm or two 200mm front fans, up to two 200mm fans on top, and a radiator up to 360mm on top and 420mm at the front to allow users to build their desired high-end system.

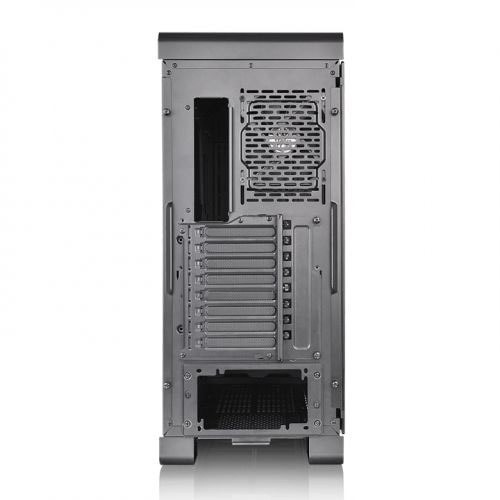

With Patented Rotational PCI-E slots, you can choose the way you want to display graphics cards vertically which helps you gain flexible space for system..

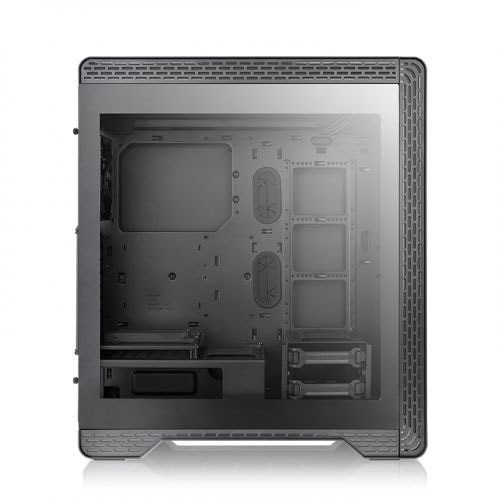

The 4mm tempered glass window on the side of the S500 TG is built to be more durable, scratch-resistant, and transparent for an advanced view of your hardware.
