| BASIC INFORMATION | ||
| Special Feature | Application: WiFi routers, traditional routers, ONU/MCs, IP cams/CC cams, door locks, fingerprint scanners, mobile phones, and tablets. High-capacity lithium batteries provide long backups to the loads. High compatibility, suitable for most digital products in the market. POE can transmit power and simplify wiring. USB output (5V), can supply charging for digital products like mobile phones, PDAs, PSPs, iPods, MP4 etc. Intelligent circuit design with over-charging, over-discharging, and short circuit protection. The built-in adapter allows a wide AC voltage range (85-265Vac). | |
| Feature | Battery Capacity: 2000mAh*4 LiFeP04 (8000mAh), Charging Time: Typical: 2-3 Hours. Output Power (Max.): 30W. Output Power & Current (In Common): USB interface: 2.0A, 10W. DC interface: 2.0A/9W, 2.0A / 12W. POE interface: 1.0A/(15V/15W), (24V/24W). LED Indicator. Temperature: O-40 Degree C. Humidity: 20%-90%. Noise Level: Less than 40dB. | |
| General | Brand: Power Guard Model: Power Guard ECO-430-PRO Type: Mini UPS |
|
| Battery | Battery: 8000mAh Back up time(Full load): 4-8 Hours |
|
| Basic Information | ||
| Others | Volt Ampere (VA): Unmentioned Input Voltage (V): 100 - 240V Output Voltage (V): USB: 5V DC, DC: 9V DC/12V DC, POE: 15V DC/24V DC Frequency (Hz - KHz): 50Hz - 60Hz Load Capacity: Unmentioned Transfer Rate: Unmentioned LED Display: No |
|
| Physical Specifications | ||
| Physical Specs | Output connection (Back side): Unmentioned Body Material: Unmentioned Dimensions: 159 x 104 x 28mm Weight (Kg): 0.4 kg |
|
| WARRANTY INFORMATION | ||
| Warranty | 1 year | |

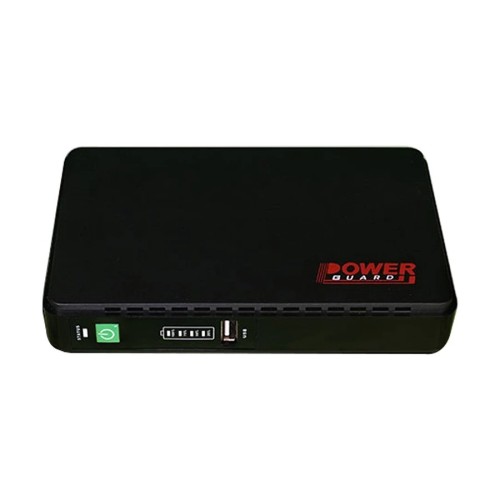

Power Guard ECO-430-PRO 8000mAh Mini DC UPS for Router
The Power Guard ECO-430-PRO 8000mAh Mini DC UPS is another robust option designed to keep routers, modems, and other small electronic devices running during power outages. It offers reliable performance and compact portability, making it ideal for home and office use.
Key Features:
Battery Capacity:
8000mAh lithium-ion battery, providing sufficient backup for routers, modems, and other low-power devices.
Voltage Output Options:
Supports multiple voltage outputs, typically 9V, 12V, 15V, or 24V, ensuring compatibility with a variety of devices.

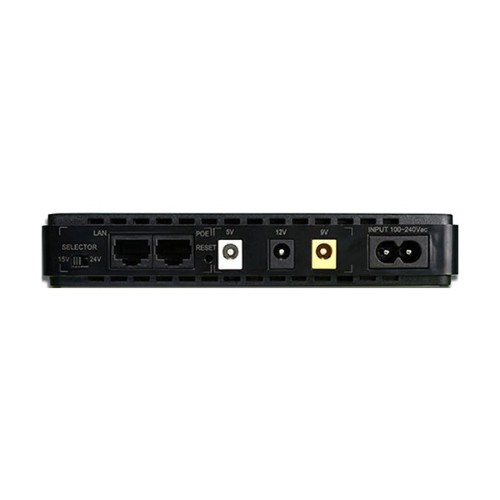

Multiple DC Ports:
Equipped with multiple output ports to simultaneously power devices like a router and modem.
USB Port:
Includes USB output for charging USB-powered devices such as smartphones or small gadgets.

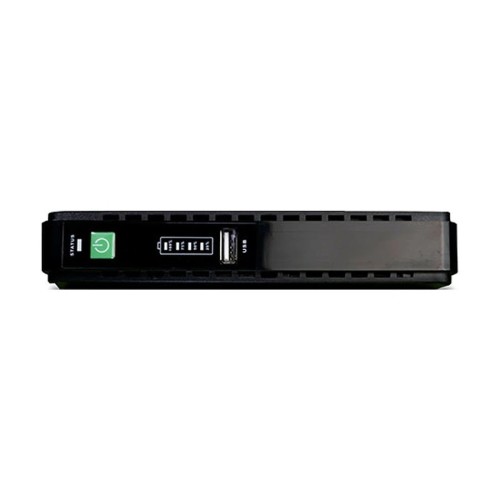

LED Indicators:
Displays the status of charging, battery level, and output power.
Safety Protection:
Features overcharge, over-discharge, short-circuit, and overload protection to protect connected devices and ensure safe operation.
Compact Design:
Lightweight and easy to carry, with a sleek and space-saving form factor.
Plug-and-Play Functionality:
Easy to set up without requiring technical expertise.
Benefits:
Uninterrupted Internet Access: Keeps your internet running during power cuts, preventing disruptions to work, gaming, or streaming.
Device Protection: Stabilizes power supply, preventing abrupt shutdowns that can harm sensitive electronics.
Versatile Compatibility: Can power various devices, including IP cameras, VoIP phones, and other small electronics.
Usage Tips:
Check Device Requirements:
Ensure your router or device's voltage and current match the UPS's output.
Charging:
Fully charge the UPS before first use for maximum backup performance.
Connecting Devices:
Use the provided cables to connect the Mini DC UPS to your router or other devices.
Battery Maintenance:
Recharge the UPS regularly, even if not used frequently, to maintain battery health.
Comparison with Other Models:
The ECO-430-PRO has a slightly smaller capacity (8000mAh) compared to some models like the ECO-1825 (10,000mAh), but it still offers a reliable backup duration for most routers.
It is ideal for those needing a balance of portability and backup time for typical home or office setups.
