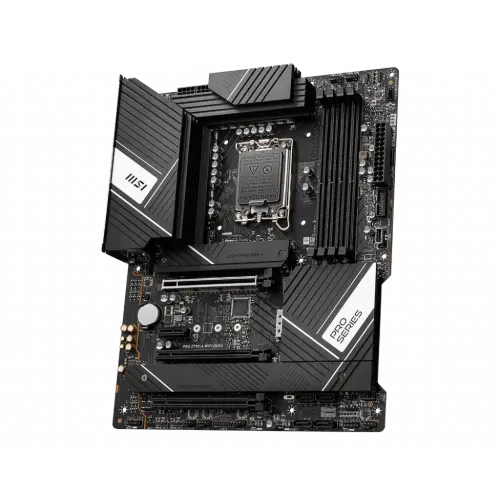

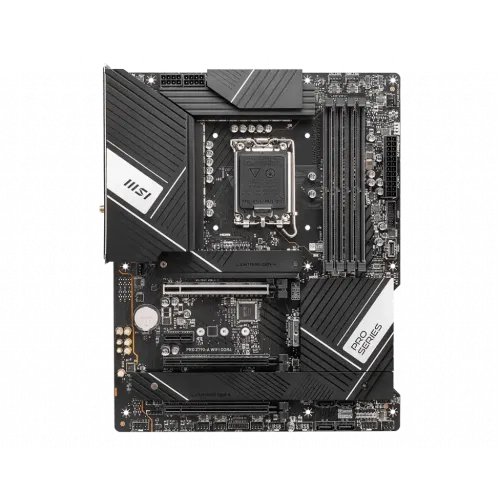

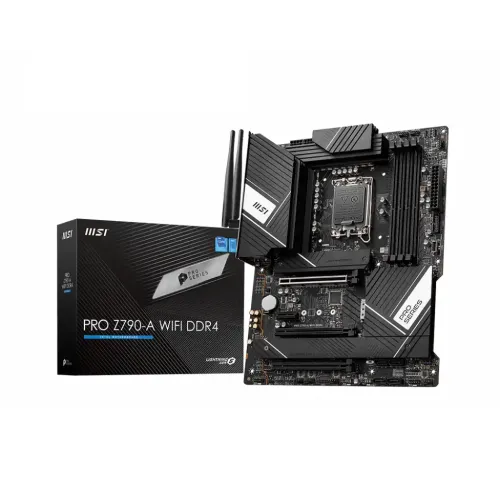

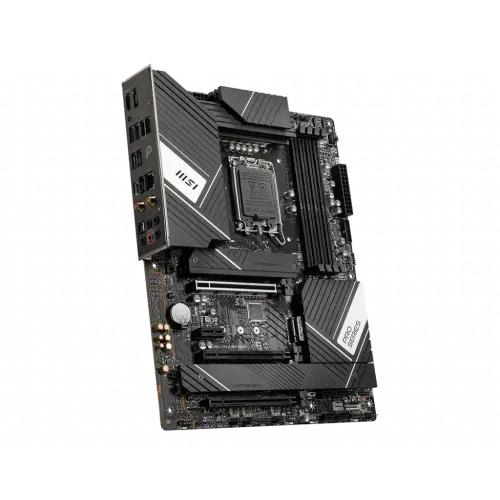

MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

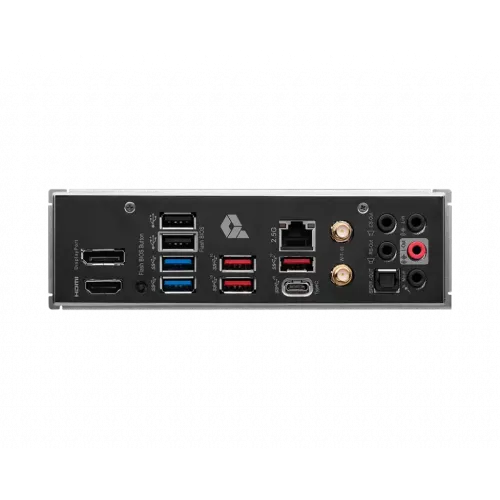

The MSI PRO Z790-A WIFI DDR4 ATX Motherboard supports LGA 1700 CPUs from the 12th/13th generation Intel Core, Pentium Gold, and Celeron families. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Six SATA III connections and four M.2 interfaces give abundant storage space and enable RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Benefit from speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard comes with a 03-year warranty.

Features:

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
• Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
