| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors1 Processor socket LGA1200 |
|
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Memory | ||
| Slots | 4x DDR4 memory slots | |
| Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1 | |
| Connector & Ports | ||
| LAN | 1x Intel I225V 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_2, M2_3, M2_4 slots (from Z590 chipset) |
|

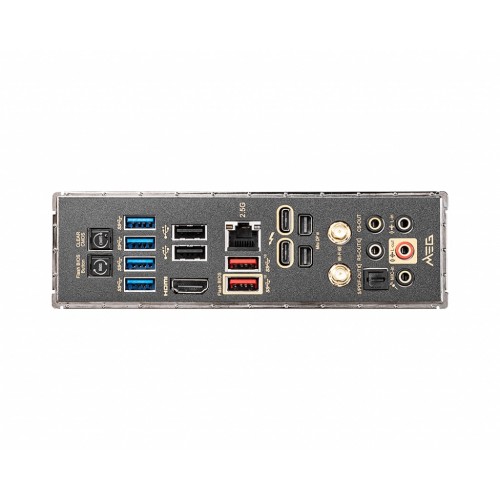

| USB Port | 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

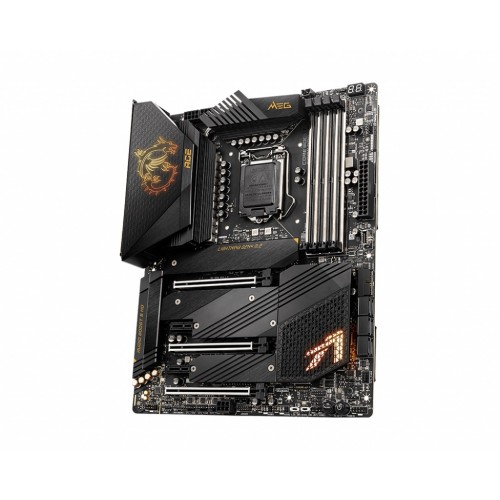

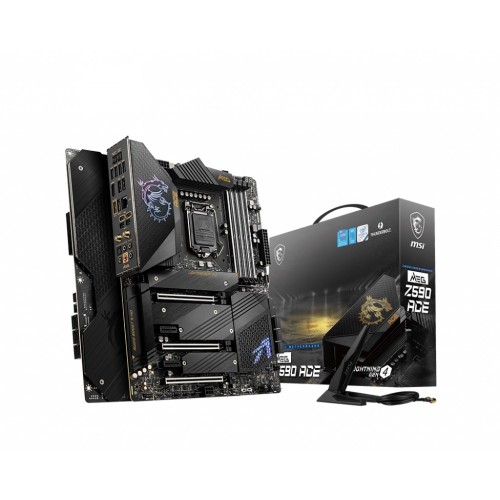

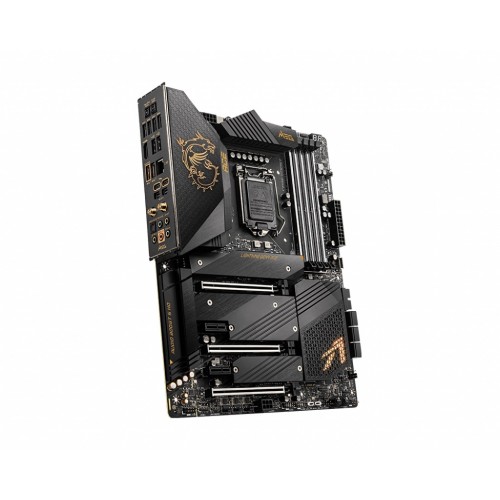

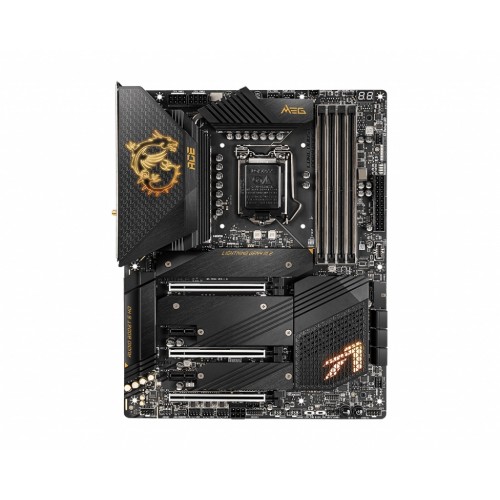

MSI MEG Z590 ACE Gaming Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz, The motherboard has Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. The Motherboard comes with Extreme Power Design, that INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors. The Motherboard has Outstanding Cooling Solution, that Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. It has 2.5G LAN with latest Wi-Fi 6E Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. The Motherboard has One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. It is also featured with 8 Layer PCB with 2oz Thickened Copper, that Provides higher performance and long-lasting system stability without any compromise. Here, the Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. This latest MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.
