| Key Feature | ||
| Certification | 80 PLUS Bronze Certified | |
| Efficiency (Approx.) | 85% Typically | |
| Fan Size | Fan Size 120 mm| Fan Bearing LDB | |
| Frequency | 50-60 Hz | |
| MTBF | >100,000 hours | |
| Output | ||
| Voltage | 100-240 Vac | |
| Power | 650W | |
| Connectors | ||
| Connector | MB 24 Pin 1| CPU 12V 4+4 Pin 1| SATA 6| Peripheral 4 Pin 2| FDD Cable 4 Pin 1| PCI-e 6+2 Pin 2 | |
| Input | ||
| Current | 8-4 A | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 5 Years | |

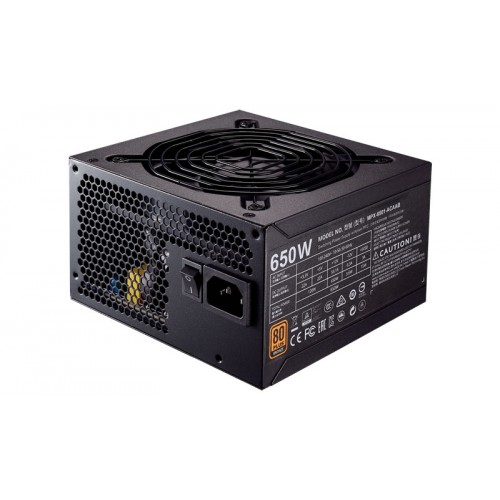

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load, the MasterWatt fan remains idle, offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance, MasterWatt is equipped with 16 AWG power cables, which reduces resistance, thereby increasing efficiency.
80 PLUS Bronze Certified
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.
Durable LDB Bearing
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
●︎ Sealant on the The groove outside of the bearing helps to circulate the oil
●︎ Sealant on the bobbin and featuring the highest dustproof level IP6X
●︎ Recycle slot adds extra storage space for the oil
●︎ The shaft makes the oil flow by pumping it while spinning
Semi-Fanless up to 15% load
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.
Dual Forward and DC-to-DC Circuit Design
More Conductive PCI-e CablesThe Dual Forward and DC-to-DC circuit design offer reliability and stability. This is especially significant in +3.3V and +5V outputs.
