| Case Features | ||
| Case Type | Mid-tower case Gaming Case | |
| Cooling System | 140mm fans and one rear 120mm fan | |
| Drive Bays | Behind MB Tray: 2 x 2.5″ SSDBehind the right flip panel: 2 x 2.5”SSD Hard Drive Cage: 3 x 3.5″ HDD/2.5″ SSD Above PSU Chamber: 2 x 2.5″ SSD |
|
| Fan Support | Front: 2 x 140mm or 3 x 120mm Top: 2 x 120mm or 2 x 140mm Top of PSU chamber: 2 x 120mm | |
| Front Ports | Front: 2 x 140mm or 3 x 120mm | |
| I/O Port | 1 x Fan speed control button1 x TRRS AUDIO 2 x USB 3.0 1 x USB 3.1 TYPEC (Optional) | |
| Motherboard Support | E-ATX(width: under 280mm)/ATX/M-ATX/ITX | |
| Others | Maximum CPU Cooler Height: 176mm Maximum Graphics Card Length: 384mm |
|
| Pre- Installed Fans | 2 x 140mm PWM Fan (front) Rated Speed:600 ±200 (30% Duty)-1200RPM ±10% Air Flow:60.56CFM Noise:25.8dB(A)1x 120mm PWM fan (rear) Rated Speed:600 ±200 (30% Duty)-1500RPM ±10% Air Flow:54.6CFM Noise:26.1dB(A) |
|
| PSU | 210mm Top of PSU chamber: 2 x 120mm Above PSU Chamber: 2 x 2.5″ SSD |
|
| Radiator Support | Front (multi-way fan/radiator bracket): 1 x 360/280/240mmTop: 1 x 240mm (aligned to the left) | |
| Side Panel | 4.0mm tempered glass | |
| Tempered Glass Panel | 4.0mm tempered glass (both sides) | |
| Physical Specification | ||
| Dimensions | (D) 478mm x (W) 229mm x (H) 494mm | |
| Physical Specifications | ||
| Color | Black | |
| WARRANTY INFORMATION | ||
| Warranty | 01-year warranty | |

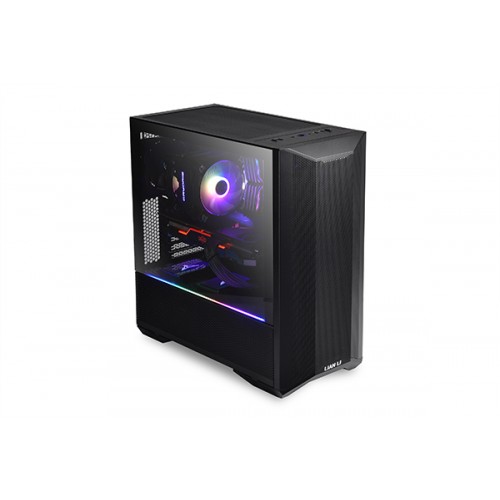

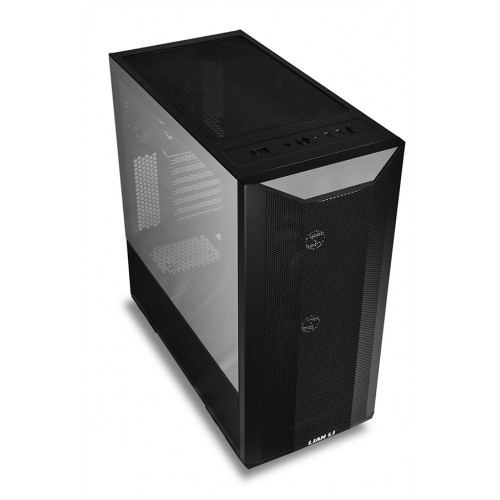

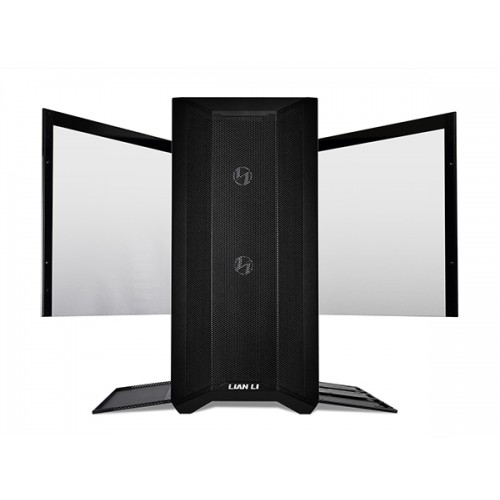

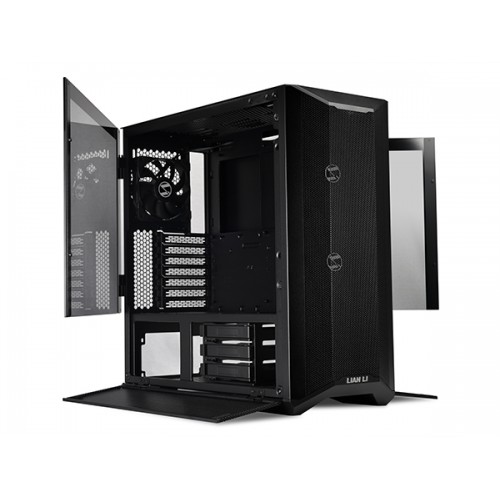

Lian Li LANCOOL II MESH Performance features a mesh front panel and mesh bottom left shroud panel, honeycomb vent design and built-in PWM fans, ensuring bountiful airflow delivered to your components while the system runs at peak performance. With the mesh front, LANCOOL II MESH making great airflow in the chasis, Packing three PWM fans, two front 140mm fans and one rear 120mm fan effectively cooling the component in user’s PC build and able to control by the botton on the I/O port. 9 drive mounting space and supports 384mm maximum GPU length and 176mm maximum hight clearence. Sollution for the cable management with double tempered glass to view the interior. LANCOOL II MESH Performance Case features a mesh front panel and mesh bottom left shroud panel, honeycomb vent design and built-in PWM fans, ensuring bountiful airflow delivered to your components while the system runs at peak performance.
Mesh intakes spanning the front panel guarantee sufficient airflow in and out of the system, allowing it to run at peak performance
Optimized airflow is a result of the collaboration between the brand-new mesh design, additional exhaust vent holes, and three high-performance PWM cooling fans.
2 x 140mm PWM intake fans pre-installed at the front and 1 x 120mm exhaust fan in the back of the PERFORMANCE EDITION produce ample airflow, keeping your system running at peak performance.
The four-mode fan controller on the top front allows you to experience fan control on a whole new level. Select L for casual use like internet browsing, press H when you’re pushing your GPU(s) and CPU hard.
Note! The hub supports fans with either 3-PIN or 4-PIN header. However, if you intend to synchronize and control fan speed and noise level for the added fans via the fan controller, the added fans should have 4-PIN PWM headers.
The space between the top and bottom chamber now features two removable PSU shroud covers to house either 2 x 2.5” SSDs or can be removed to fit 2 x 120mm fans. Compared to the former integrated design, the modular PSU shroud covers allow users to remove them for an unobstructed airflow between the top and bottom chamber.
