| Graphics Card | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC | |
| Core Clock | Boost Clock: 2452MHz Base Clock: 2295MHz |
|
| Memory Clock | 28Gbps Memory Bandwidth (GB/sec): 896 GB/sec |
|
| BUS Type | PCI Express Gen 5 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 8960 | |
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b | |
| Connectors | 3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable | |
| Recommended PSU | 800W | |
| Multi Display | 4 | |
| Dimensions | Length: 300mm Height: 116mm Width: 41mm |
|
| Others | NVIDIA DLSS 4 Real-Time Ray Tracing Ray Tracing Cores: 4th Generation, 133 TFLOPS Tensor Cores: 5th Generation, 1406 AI TOPS NVIDIA Architecture: Blackwell NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay OS Certification: Windows 11, Linux, FreeBSDx86 NVIDIA Highlights NVIDIA G-SYNC-Ready Game Ready Drivers NVIDIA Studio Drivers NVIDIA GPU Boost Vulkan API 1.4 NVIDIA Encoder: 1x Ninth Generation NVIDIA Decoder: 1x Sixth Generation HDCP: 2.3 DirectX: 12 Ultimate OpenGL: OpenGL 4.6 |
|
| Warranty | 3 Years | |

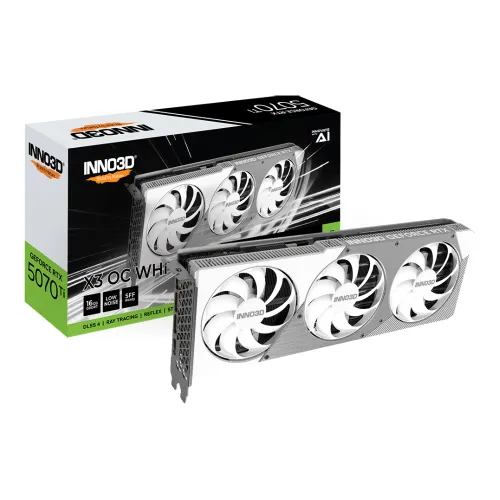

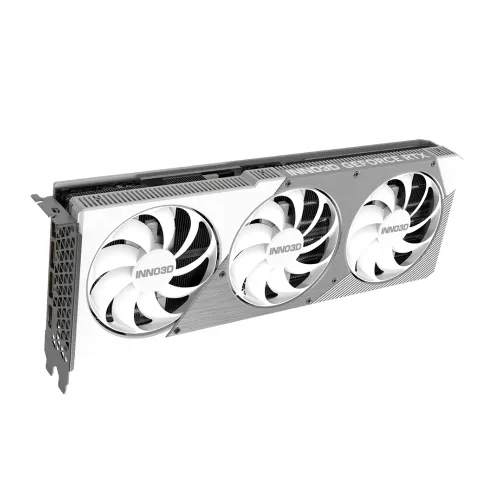

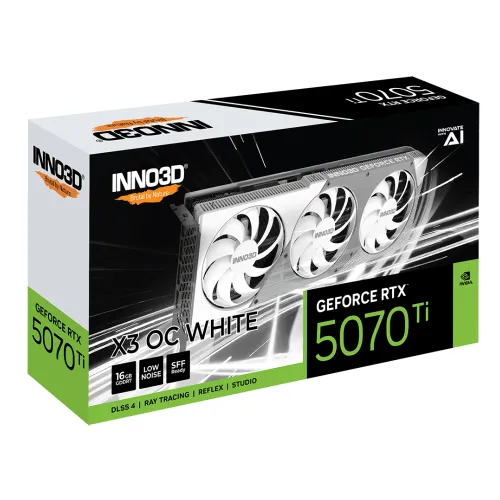

The INNO3D GeForce RTX 5070 Ti X3 OC is an enthusiast-tier graphics card powered by the high-performance Blackwell architecture. Positioned as a premier choice for 4K gaming and professional AI development, this card offers a significant core count increase and next-generation memory speeds compared to the previous 70-Ti series.
The card is built on the GB203 GPU, featuring a massive 8,960 CUDA cores. As an "OC" (Overclocked) edition, it pushes beyond reference speeds with a factory-tuned boost clock of 2482 MHz. It integrates 4th Gen Ray Tracing Cores (133 TFLOPS) and 5th Gen Tensor Cores (1406 AI TOPS), enabling the full suite of NVIDIA DLSS 4. This technology introduces "Multi Frame Generation," allowing for even higher framerate multiplication in demanding titles like Cyberpunk 2077 or Alan Wake 2.
The RTX 5070 Ti X3 OC is one of the first cards to feature 16GB of GDDR7 VRAM. Operating at an effective 28 Gbps on a wider 256-bit memory interface, it delivers a staggering 896 GB/s of bandwidth. This capacity and speed are crucial for handling 4K "Ultra" textures, complex 3D rendering in Blender, and training large language models (LLMs) locally.
X3 Triple-Fan Solution: The cooling system features three 88mm scythe fans and a large vapor chamber. Despite the triple-fan setup, INNO3D has engineered the card to remain a dual-slot (41mm) design, making it highly compatible with mid-sized cases.
Connectivity: It includes one HDMI 2.1b and three DisplayPort 2.1b ports, supporting modern displays up to 4K at 480Hz or 8K at 165Hz.
Power Requirements: The card has a TGP of 300W. It uses the newer 12V-2x6 (16-pin) power connector, with a recommended 750W PSU or higher.
