| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek ALC1220-VB Audio CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G- Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors |
|
| BASIC INFORMATION | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Memory | Type: Dual channel memory architecture Slots: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory: Supported Memory AMD Ryzen 5000 Series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 4000 G-Series processors: Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 3000 Series processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors: Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 128 GB |
|
| Graphics | ||
| Graphics | Graphics: Integrated Graphics Processor: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies * For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only. Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
|

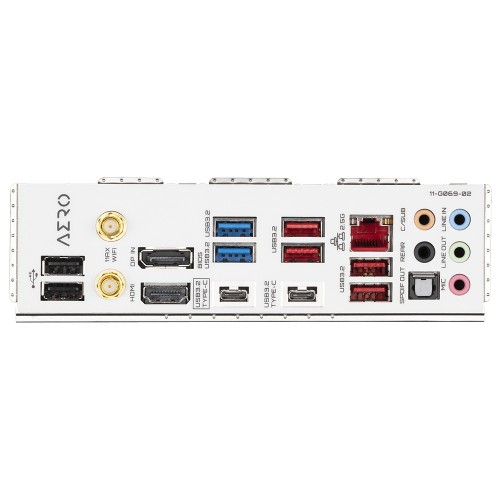

| USB Port | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

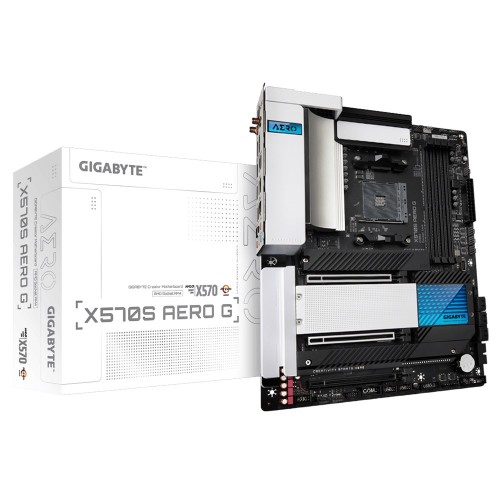

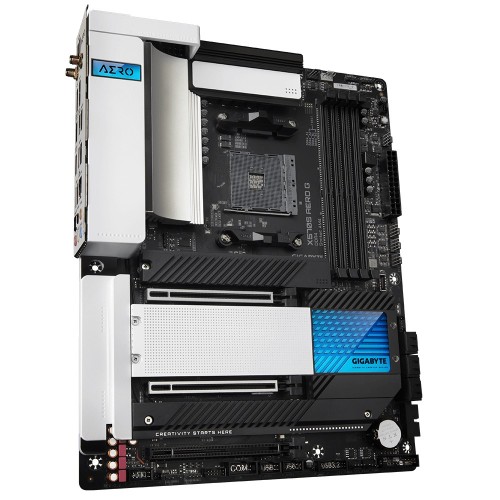

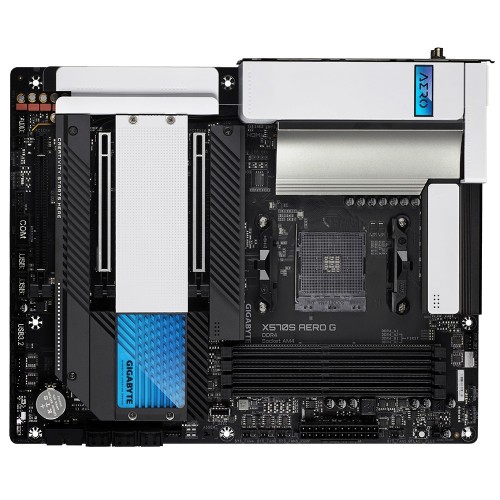

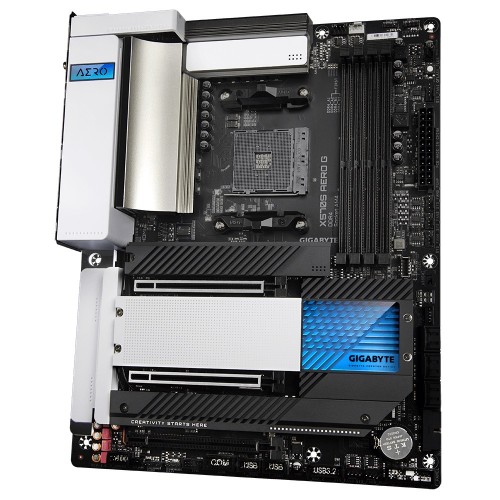

The Gigabyte X570S AERO G AMD ATX Motherboard supports Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Gigabyte X570S AERO G AMD ATX Motherboard delivers reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging at the same time. VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and the 60W Power Delivery design for your devices charging. It’s a perfectly tailored connectivity for creators and professional artists. Gigabyte X570S AERO G AMD ATX Motherboard features High-bandwidth and low-latency network support by Intel 2.5GbE LAN and Wi-Fi 6 2x2 802.11ax with all-new antenna support for better signal. It has 4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards. Gigabyte X570S AERO G AMD ATX Motherboard features an effective cooling solution design for better thermal dissipation and Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration. Q-Flash Plus Updates BIOS without Installing the CPU, Memory, and Graphics Card.
In today's review, we will be taking an up close look at Gigabyte's X570S AERO G motherboard for the AMD based systems. This also may very well be the last chipset for the long standing AMD AM4 socket. We were first introduced to the Ryzen Zen CPU in 2017. This was quickly followed up by Zen+ based processor. Next, with the Zen 2 launch, using the same X naming convention as the follow-up to X470 came a new X570 chipset to extend the AM4 socket lifespan once again. Its largest change overall came in the form of a new x4 PCIE 4.0 uplink to the CPU. This upgrade allowed for more USB ports, M.2 sockets, and PCIE slots using the X570 chipset. After the highly successful B550 chipset launch in 2020, marketed and priced to be more budget friendly. Waiting for the perfect moment to upgrade can pay off, especially as prices decrease and bugs are worked out over multiple revisions. AMD X570 (S) is the latest revision from AMD this the AM4 socket. "S" being for silent as the chipset fan has been removed. AMD's Computex 2022 press conference revealed the company's plans for the new AM5 socket and new Zen 4 processors. In additional news, the company has not ruled out extended support for its current AM4 socket. With strong sales and a competitive advantage in gaming and production workflows, those looking for a mature platform will find AM4 something that shouldn't be written off just yet. With AMD long-term support the AM4 socket, motherboard manufacturers have an opportunity to refresh the X570 lineup yet again with new features, including Wi-FI 6E, USB 3.2 connectivity, Thunderbolt 4, and higher supported memory frequencies that just weren't available three years ago. Gigabyte uses the AERO naming convention to market it towards content creators. These can be strictly for work or a bit of gaming on the side as well. The AERO branded motherboards coincide with other content creation oriented products like Vision and Designare that are marketed towards the same targeted audience. Some of which have been discontinued due to being only created for a certain chipset that often overlap in features and suggested price points. The X570S AERO G is designed to be used in a work computer with an emphasis on increase storage options, lots of external connectivity points and a beefy power delivery system for maximum uptime. Understanding that this motherboards focus on the workforce, we will take a closer look at the features that will help aid in that viewpoint throughout this review
