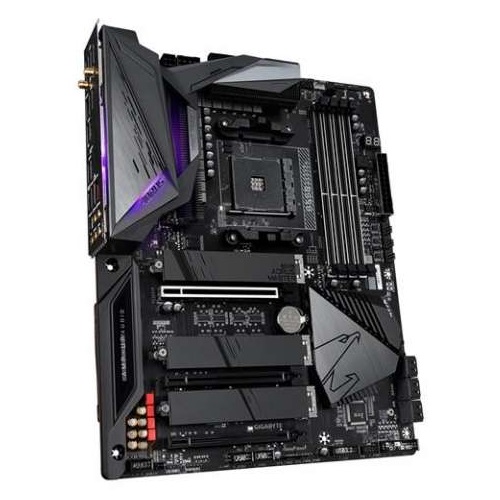

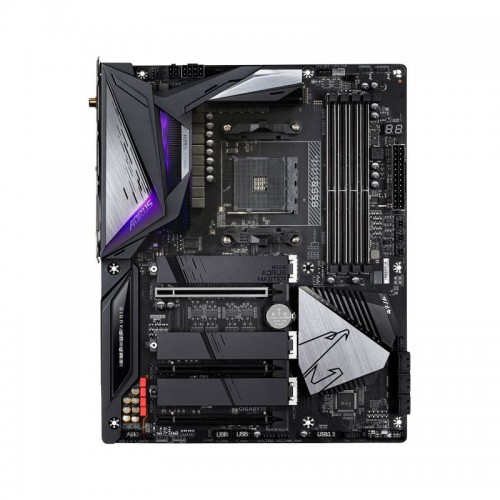

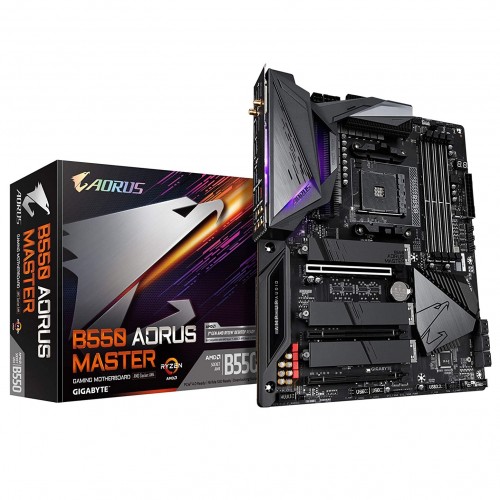

Gigabyte B550 Aorus Master Wi-Fi AMD AM4 ATX Motherboard
  • Gigabyte B550 Aorus Master Wi-Fi AMD AM4 ATX Motherboard
  • Gigabyte B550 Aorus Master Wi-Fi AMD AM4 ATX Motherboard
  • Gigabyte B550 Aorus Master Wi-Fi AMD AM4 ATX Motherboard

Gigabyte B550 Aorus Master Wi-Fi AMD AM4 ATX Motherboard

Price: Out Of Stock
Status: Out Of Stock
Product Code: 2875
Brand: Gigabyte
Key Features
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Advanced Thermal Design
  • Ultra Durable PCIe 4.0 Ready
  • Direct 16 Phases Digital VRM Solution
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
BIOS 2 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Basic Information
Chipset AMD B550
Audio Realtek ALC1220-VB codec

Support for DTS:X Ultra

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out
CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Memory
Memory Type:
Dual-Channel Architecture

Slots:
4 x DDR4 memory slots

Supported Memory:

3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/
4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133
MHz memory modules

3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/
5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/
3333(O.C.)/ 3200/ 933/ 2667/ 2400/ 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory:

support up to 128GB
Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
2242/2280/22110 SSDs:

3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs

New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0
x4/x2 SSDs

2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key,
type 2242/2280/22110 SSDs:

3rd Generation AMD Ryzen processors support PCIe 4.0 x4/x2 SSDs

New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated into the Chipset:

Support for RAID 0, RAID 1, and RAID 10
Graphics
Graphics Graphics:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR

Max Shared Memory:

16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
LAN Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x Thunderbolt header

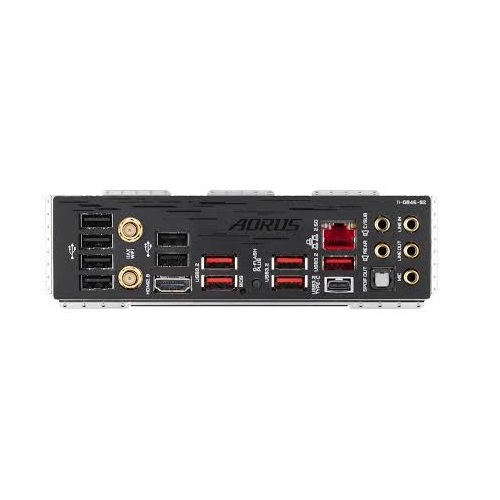

USB Port CPU:

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
WARRANTY INFORMATION
Manufacturing Warranty 03 Years

Description :

Gigabyte B550 Aorus Master Wi-Fi

  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16 Phases Digital VRM Solution with 70A Power Stage
  • Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & HDMI Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

Making the PC experience fast, smooth and easy

Optimizing computer responsiveness from system boot to application launch

Offering SSD performance with HDD capacity at an affordable cost

Quickly accessing key files by automatically learning users' computing behaviors
