| BASIC INFORMATION | ||
| Form Factor | Micro ATX Form Factor | |
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | ALC1150 7.1 Channels, High Definition Audio, Hi-Fi (Front) | |
| CPU | Socket AM4 Support AMD Supports 3rd Gen AMD Ryzen™ (Matisse / Renoir) Processors And Ryzen™ 4th Gen (Vermeer) Processors And Ryzen™ 4th Gen (Vermeer) Processors Support For Future AMD Ryzen Processors With BIOS Update |
|
| Memory | ||
| Slots | 1x PCIe 4.0/ 3.0 X16 Slot (PEX16_1): Supports X 16 Lanes With AMD Ryzen™ 3rd Gen Processors. (Matisse Only) Supports X 8 Lanes AMD Ryzen™ With Radeon Vega Graphics Processors. (Depended On CPU) 1 X PCIe 3.0 X 16 Slot (PEX16_SB_1): Supports X 4 Lanes 2 X PCIe 3.0 X 1 Slot * According To Different CPUs Will Have Different Speeds. * PCIe 4.0 Speed Only For AMD Ryzen™ 3rd Gen Matisse. * When Using PEX1_1 Slot, PEX16_SB_1 Slot Will Be Adjusted To X 1 Lanes. |
|
| Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support For DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen With Radeon Graphics Processors (Renoir APUs) Support For DDR4 4933+ (OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 X DDR4 DIMM Memory Slot, Max. Supports Up To 128 GB Memory Each DIMM Supports Non-ECC 8/ 16/ 32 GB DDR4 Module |
|
| Graphics | ||
| Graphics | By CPU Model Supports DX12 Supports HDCP | |
| Connector & Ports | ||
| LAN | Realtek RTL 8118AS 10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability Support Super LAN Surge Protection |
|
| Supported Storage | 6 X SATA III Connector (6Gb/S) : Supports AHCI & RAID 0, 1, 10 2 X M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD Module Supports PCIe 4.0 X 4 (64Gb/S)/ 3.0 X 4 (32Gb/S) - NVMe/ AHCI SSD Supports SATA III (6.0Gb/S) SSD * M.2 (M Key) Socket: The Bandwidth Is Dependent On The CPU. Supports PCIe 4.0 X 4 (64Gb/S) Speed, Which Depends Only On Ryzen 3rd Gen Matisse. * When The PCIe-M2_2 Slot Is Occupied By PCIe Mode, The SATA3/ SATA4 Connector Will Be Disabled. * When PCIe-M2_2 Slot Is Occupied By SATA Mode, The SATA3 Connector Will Be Disabled. |
|
| Internal I/O Ports | 6 X SATA III (6.0Gb/S) Connector 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X CPU Water Cooling Connector (CPU_OPT) 2 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Clear CMOS Header 1 X S/PDIF Out Connector 1 X COM Port Header 2 X LED Header (5V) 1 X LED Header (12V) |
|
| USB Port | 1 X USB 3.2 (Gen2) Type-C Port (1 On Rear I/O) 1 X USB 3.2 (Gen2) Type-A Port (1 On Rear I/O) 6 X USB 3.2 (Gen1) Port (4 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Port (2 On Rear I/Os And 4 Via Internal Headers) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

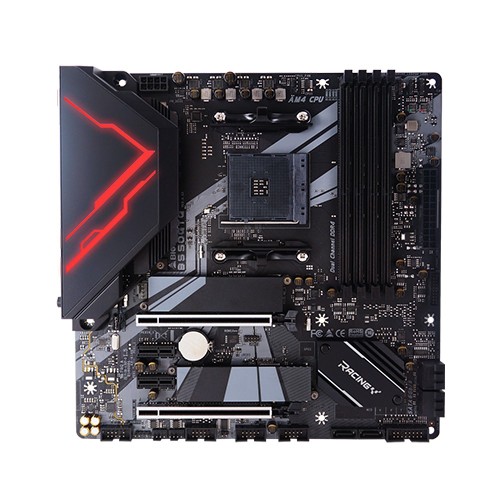

BEST FOR MIDRANGE GAMING! Biostar Racing B550GTQ Is Going To Go Mainstream. The Racing B550GTQ Is A Micro-ATX Motherboard That Is Equipped With The B550 Chipset For AMD Socket AM4 That Brings Support For Ryzen 3rd Gen Processors. It Offers Fast Processing Power, Great Bandwidth, And Game Responsiveness To Bring The Best Gaming Impact To Gamers. It Has PCle 4.0, M.2 4.0, Armor Gear, CPU OPT Header, VIVID LED DJ, LED ROCK ZONE, And BIOS EZ Mode. If You Would Like To Build A Compact Mid-Range Gaming PC, RACING B550GTQ Is A Good Place To Start.
AMD B550 Is The High-End Chipset For Overclockers And Tweakers Who Need Robust Platforms. This Chip Provides The Ultimate Low-Level Control To Its Users And Delivers Ultimate Graphics Card Bandwidth. It Also Supports PCI-E Gen4 Bandwidth.
BIOSTAR RGB SYNC Is Designed To Create Your Personalized Lighting Effects. Let All The RGB Peripherals And Components Sync Together.
Meet the Biostar Racing B550GTQ motherboard. It’s a rather entry-level mATX product from the Racing series, which also includes an ATX form factor version. The design is rather attractive, with a consistent black-and-grey theme. This is a 24.4 x 24.4 cm, mATX-factor product equipped with a B550 chipset, and it offers such features as 6+4-phase power design (Dr. MOS) and 1x Gigabit ethernet (the ATX version has 2.5 Gbps). Priced at about 130 USD, it’s definitely a cheap one, in the range of B450 motherboards. As for the features that make it stand out from the crowd, well, there really aren’t any (except for the form factor itself). It’s the opposite of what you might have expected. The board has two PCIe slots with ‘iron slot protection’. One is PCIe 4.0 x16, while the other one is locked to PCIe 3.0 x4. Complementing these full-length slots is a pair of PCIe 3.0 x1 slots. As for the audio, you get the Realtek ALC1150 HD codec, which is a step backward as compared with other B550 boards, which are equipped with ALC1220. The power section is decent. You can see that it’s a 6+4-phase design that should handle most CPUs, but we’ve doubts if it’ll manage the 16-core Ryzen 9 3950X. The 3900X is the best safe bet. There is some good information for RGB fans here as well: one regular RGB LED header (+12 V) and two addressable RGB LED headers (+5 V). The lighting can be controlled with the “Vivid LED DJ” program. There’s also “super LAN surge protection”, which should improve electrical stability, make the internet connection more stable (sic!), and prevent damage from lightning strikes and electrical strikes (but we all know that there is nothing than can stop the former, right?). So, what does B550 mean in reality? The B series are typically business (quick add-in) or consumer-grade motherboards, but some say that the B stands for ‘budget’. Alongside the Ryzen 3 3000 series, there is the X570 chipset, and now also the B550 chipset for AM4 processors. The x16 slot and one M.2 slot still support PCIe Gen 4.0. This is provided by the processor, so you need a Ryzen 3000 chip to take advantage of this feature. Older procs will offer PCIe Gen 3.0, and the B550 chipset and DMI uplink otherwise are all PCIe Gen 3.0 as well. The board has one reinforced x16 PCIe Gen 4.0 graphics slot, as well as four RAM banks for up to 128 GB of DRAM, with max OC rated at 4933+ MHz. The board, as stated, is positioned in the lower end of what is considered the mainstream segment, and it looks sleek.
