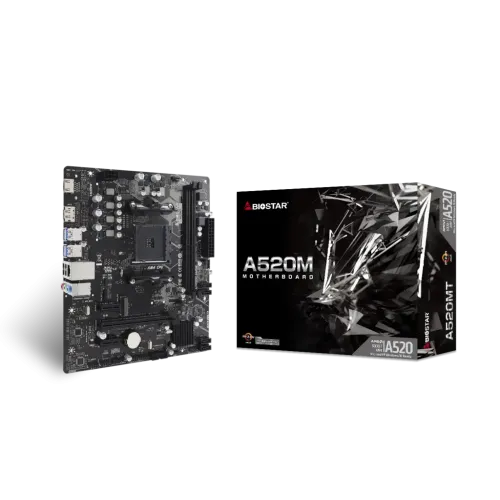

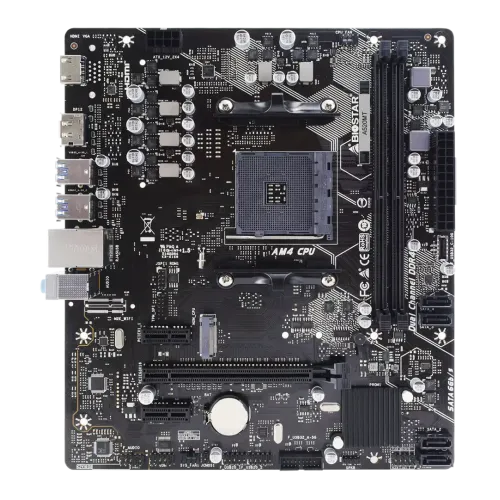

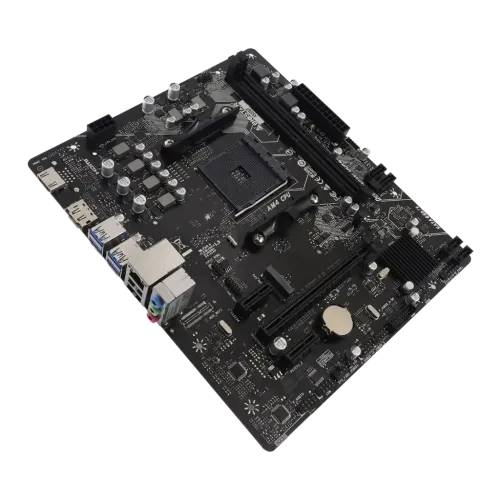

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

Price: 7,500৳ 8,250৳
Status: In Stock
Product Code: 10570
Brand: Biostar
Key Features
  • Model: A520MT
  • Supported CPU: Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) & Ryzen 4th Gen (Vermeer/ Cezanne)
  • Supported RAM: 2 x DIMM, DDR4
  • Graphics Output: 1 x HDMI, 1 x DP Port
  • Features: 1 x M.2 Slot, Realtek Gigabit LAN
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

Basic Information
Chipset AMD A520
Audio 3 x Audio Jack
BASIC INFORMATION
Supported CPU

Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors
Support for future AMD Ryzen processors with BIOS update
Form Factor Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )
Expansion Slots
M.2 Socket Supports M.2 Type 2242/ 2260/ 2280 SSD module
Memory
Memory Type DDR4
Slots 2 x DIMM
Supported Memory

4th Gen AMD Ryzen Processors (Vermeer CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
Maximum Memory Up to 64GB
Storage

Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
AMD Ryzen 5000/5000 G/4000 G/3000 Processors
1 x M.2 (M Key) Socket (M2M_CPU):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD
AMD A520 Chipset
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
Graphics
Graphics

By CPU model
Supports DX12
Supports HDCP
Connector & Ports
HDMI 1 x HDMI Port
LAN

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Internal I/O Ports

4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
USB Port

4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
Others
Bundled Software BullGuard
WARRANTY INFORMATION
Warranty 3 Years Warranty

Description :

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed to meet the demands of modern computing. With its Socket AM4 support, this motherboard is compatible with AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors, ensuring optimal performance and efficiency. Featuring the AMD A520 single-chip architecture, this motherboard offers a seamless and reliable computing experience. The 2-DIMM DDR4 memory support allows for a maximum capacity of up to 64 GB, enabling smooth multitasking and efficient data processing. Equipped with Realtek Gigabit LAN, this Motherboard ensures fast and stable internet connectivity, perfect for online gaming, streaming, and downloading large files. The inclusion of Front USB 3.2 Gen2 Type-C provides convenient and high-speed data transfer capabilities, allowing you to connect and transfer files effortlessly. With M.2 (32Gb/s) support, this motherboard offers lightning-fast storage options, ensuring quick access to your files and applications. Additionally, the HDMI 4K resolution support allows for stunning visuals and immersive viewing experiences, making it ideal for multimedia enthusiasts and gamers. The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a reliable and feature-packed motherboard that delivers exceptional performance and versatility. Whether you're a professional seeking a powerful computing solution or a gamer looking for an immersive gaming experience, this motherboard is sure to meet and exceed your expectations.
