| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
|
| Basic Information | ||
| Chipset | Intel H410 | |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers |
|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture, Slots: 2 x DIMM, Supported Memory: DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem, Maximum Memory: Max. 64GB |
|
| Storage | 4 x SATA 6Gb/s port(s) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor | |
| Connector & Ports | ||
| Internal I/O Ports | 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 4 x SATA 6Gb/s connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header, 1 x Speaker connector |
|
| USB Port | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

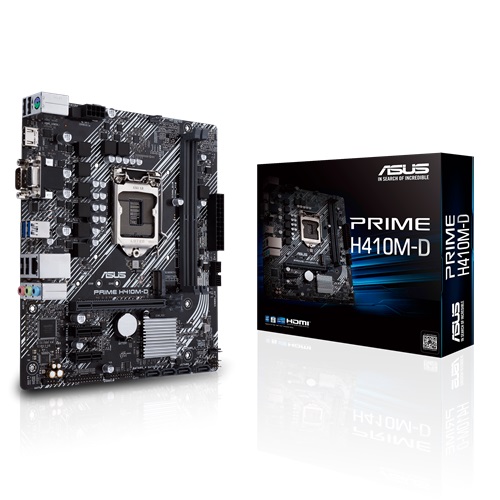

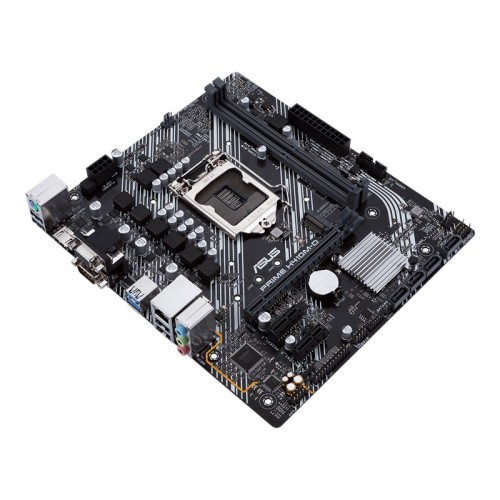

The Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard is a reliable and feature-packed motherboard designed for users seeking a compact yet powerful system. It offers a range of impressive specifications and advanced technologies that enhance performance and provide a seamless computing experience.With support for 10th generation Intel Core, Pentium Gold, and Celeron processors, the motherboard ensures compatibility with a wide range of CPUs. The Intel Socket 1200 allows for efficient and reliable connectivity between the processor and the motherboard. Additionally, it supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enabling the processor to dynamically increase its clock speed for improved performance when needed.In terms of audio capabilities, the Asus Prime H410M-D features the Realtek ALC887/897 7.1-Channel High Definition Audio CODEC. This ensures high-quality sound reproduction and supports various audio features, including jack-detection, multi-streaming, front panel jack-retasking, and up to 24-bit/192kHz playback. The motherboard also incorporates audio shielding and dedicated audio PCB layers, minimizing interference and delivering crisp and immersive audio.The motherboard's mATX form factor makes it suitable for compact systems without compromising on functionality. It measures 8.9 inches by 8.0 inches, making it ideal for smaller cases while still providing ample connectivity options. It includes multiple internal I/O ports, such as CPU fan and chassis fan connectors, USB 3.2 Gen 1 and USB 2.0 connectors, SATA 6Gb/s connectors, and a front panel audio connector, among others. These ports ensure convenient connectivity and expandability for various peripherals and storage devices.The Asus Prime H410M-D supports dual-channel memory architecture and offers two DIMM slots. It is compatible with DDR4 memory modules, supporting speeds up to 2933MHz. With a maximum memory capacity of 64GB, users can enjoy smooth multitasking and efficient data processing.For storage needs, the motherboard provides four SATA 6Gb/s ports, allowing for fast and reliable data transfer rates. Whether you're using traditional hard drives or solid-state drives, this motherboard provides sufficient connectivity options to accommodate your storage requirements.
