| Motherboard | |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection HD Audio Jack: Line in / Front Speaker / Microphone |
| BIOS | 32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment |
| Chipset | Intel H81 |

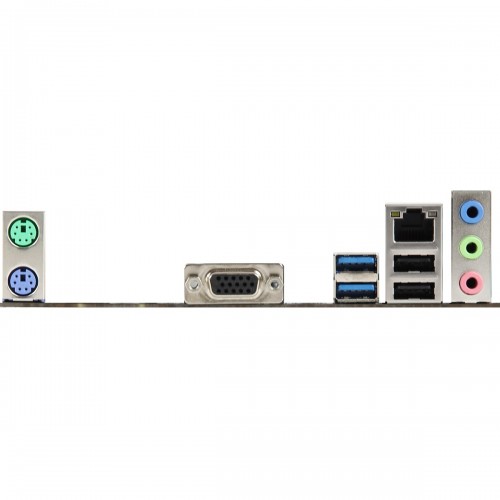

| Display Port | 1 x D-Sub Port |
| Form Factor | Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design |
| Graphics | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Max Shared Memory | 1024MB |
| Maximum Memory | 16GB |
| Memory Type | Dual Channel DDR3/DDR3L Memory Technology |
| PCI | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot |
| Slots | 2 x DDR3/DDR3L DIMM Slots |
| Supported Memory | Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory |
| TPM (Trusted Platform Module ) | 1 x TPM Header 1 x SPI TPM Header |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Supported CPU | Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) Supports Intel Turbo Boost 2.0 Technology |
| Supported Storage | 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| WARRANTY INFORMATION | |
| Warranty | 3 years |

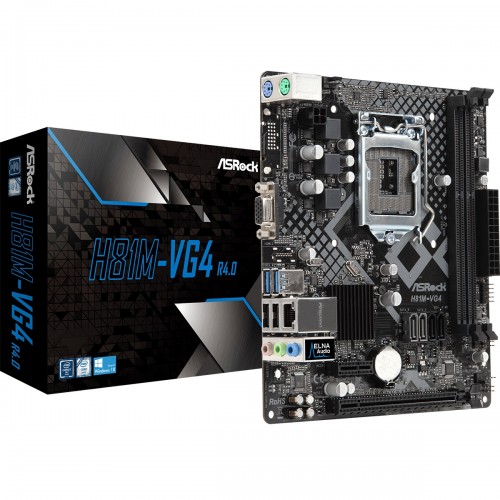

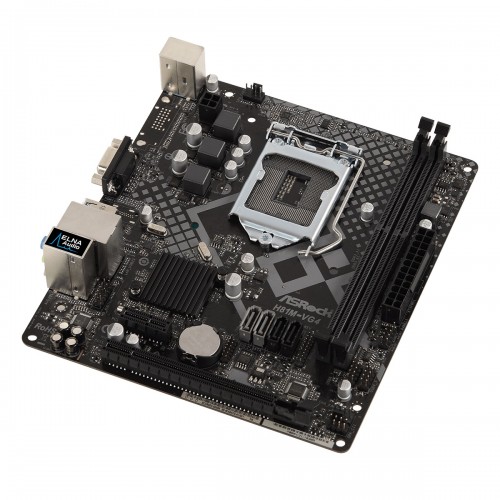

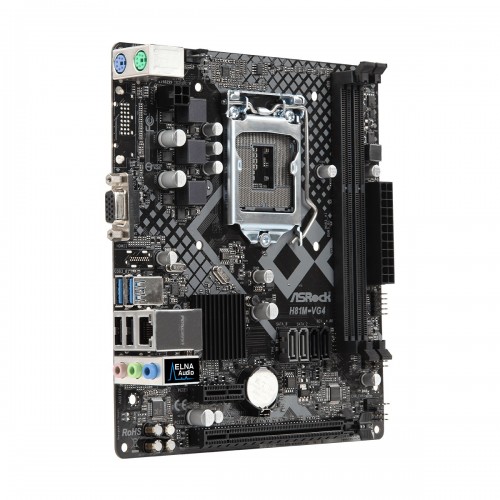

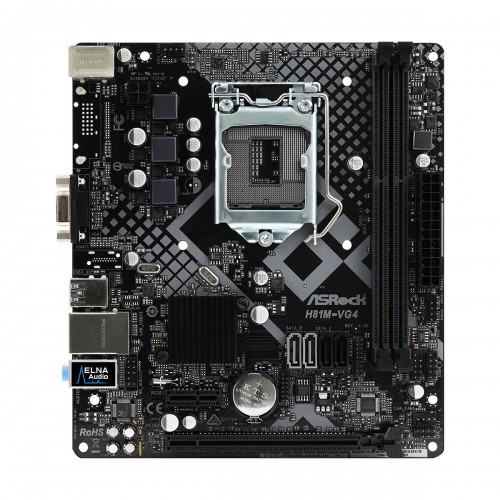

The ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard supports Intel 4th Generation Intel Core Processors (Socket 1150) and Dual Channel DDR3 1600. The Motherboard comes with 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. It features a D-Sub port for graphic output. It is built with a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections. The ASRock H81M-VG4 R4.0 features a solid capacitor design. The motherboard offers full spike protection. It includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. It also comes with ASRock Live Update & APP Shop. The ASRock H81M-VG4 R4.0 comes with 3 years of warranty.
