| BASIC INFORMATION | ||
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
|
| Basic Information | ||
| Chipset | Intel B660 | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
|
| Expansion Slots | ||
| PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
|
| MEMORY SPECIFICATIONS | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Memory | ||
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port | 1 x DisplayPort 1.4 | |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|

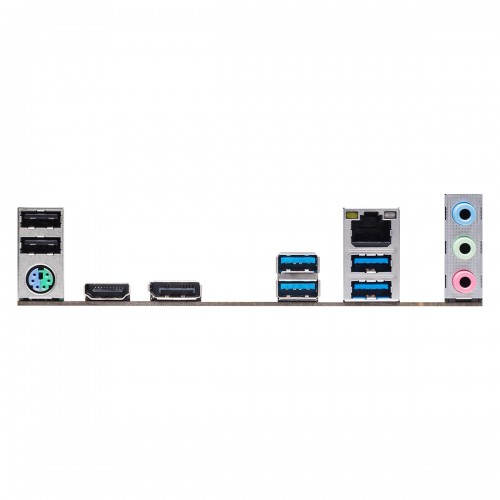

| USB Port | - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

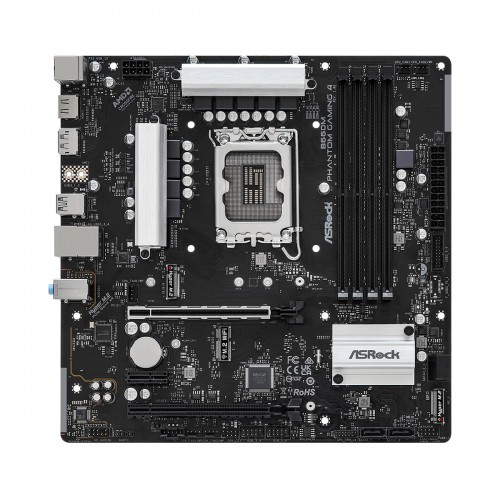

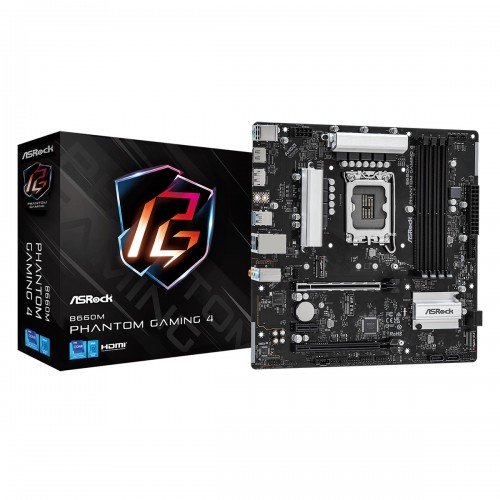

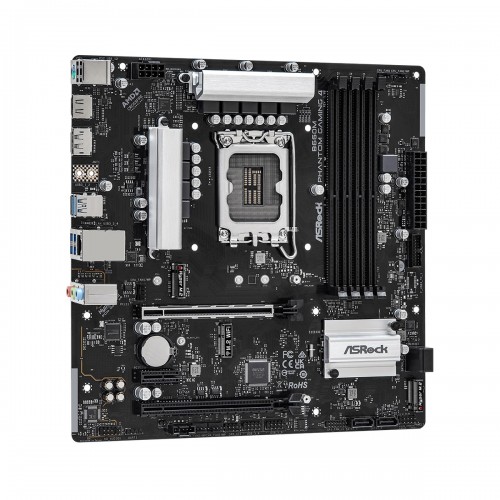

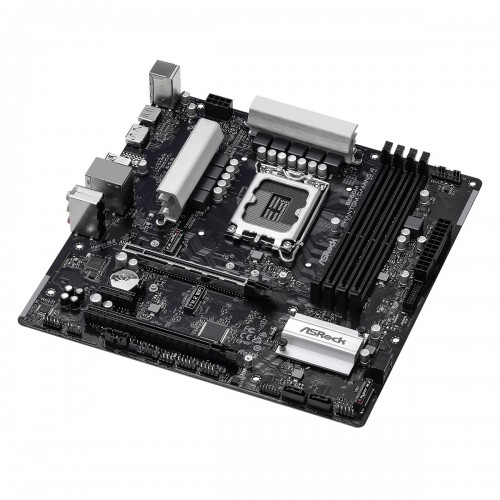

The ASRock B660M Phantom Gaming 4 is a micro ATX motherboard designed to support both the 13th and 12th generation Intel Core processors (LGA1700). With its feature-rich design and advanced technologies, it delivers excellent performance and reliability for gaming and productivity tasks.The motherboard supports Dual Channel DDR4 Memory Technology with four DDR4 DIMM slots, allowing for a maximum memory capacity of 128GB. It supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) and Intel Extreme Memory Profile (XMP) 2.0, enabling easy overclocking and optimized memory performance. The B660M Phantom Gaming 4 features ASRock Intel 4-Layer Memory POOL Technology, which optimizes memory traces for improved signal quality and stability.In terms of connectivity, the motherboard provides a variety of ports and connectors. It includes USB 3.2 Gen1 and USB 2.0 ports for fast data transfer and peripheral connectivity. The motherboard features an HDMI port and a DisplayPort 1.4, allowing for dual graphics output and supporting high-resolution displays up to 4K and 8K. It also offers SATA3 6.0 Gb/s connectors for traditional storage devices and M.2 sockets that support PCIe Gen4x4 for high-speed NVMe SSDs.The ASRock B660M Phantom Gaming 4 is equipped with 7.1 CH HD Audio featuring the Realtek ALC897 Audio Codec. It supports Surge Protection and Nahimic Audio for immersive sound quality and protection against audio spikes.The motherboard features a solid capacitor design and ASRock Super Alloy components, including Premium Power Choke, Sapphire Black PCB, and High-Density Glass Fabric PCB. These components ensure durability and stability, making the motherboard suitable for demanding usage scenarios. The ASRock B660M Phantom Gaming 4 also includes ASRock Full Spike Protection, safeguarding all USB, audio, and LAN ports against potential damage from voltage spikes.With its micro ATX form factor, the B660M Phantom Gaming 4 is suitable for compact PC builds. It features a 128Mb AMI UEFI Legal BIOS with multilingual GUI support, offering a user-friendly interface for easy system configuration. The motherboard supports ACPI 6.0 Compliant wake-up events and SMBIOS 2.7.
