| BASIC INFORMATION | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
|
| Basic Information | ||
| Chipset | Intel B460 | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
|
| CPU | Supports 10th Gen Intel Core™Processors (Socket 1200), Digi Power design, 7 Power Phase design, Supports Intel Turbo Boost Max 3.0 Technology |
|
| Memory | ||
| Memory | Type: DDR4, Slots: 1 x PCI Express 3.0 x16 Slot*, 2 x PCI Express 3.0 x1 Slots, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module, Supported Memory: - Dual Channel DDR4 Memory Technology, - 2 x DDR4 DIMM Slots, - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, - Supports Intel Extreme Memory Profile (XMP) 2.0, - 15μ Gold Contact in DIMM Slots, Maximum Memory: Max. capacity of system memory: 64GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4 | |
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Internal I/O Ports | 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| USB Port | 2 x USB 2.0 2 x USB 3.2 Gen1 |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

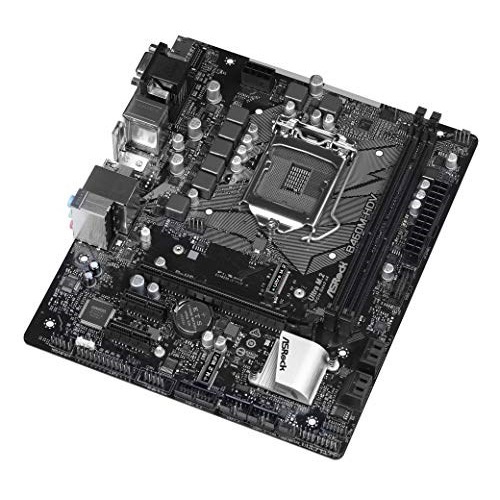

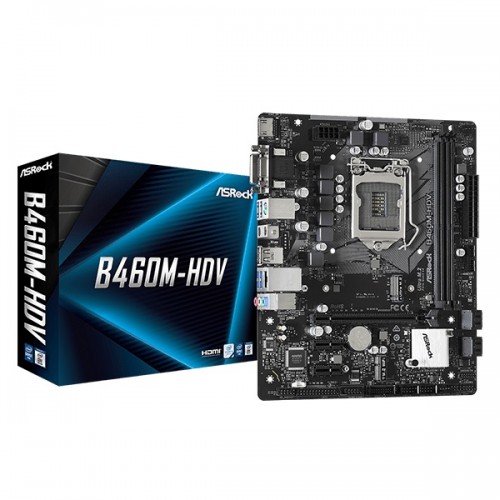

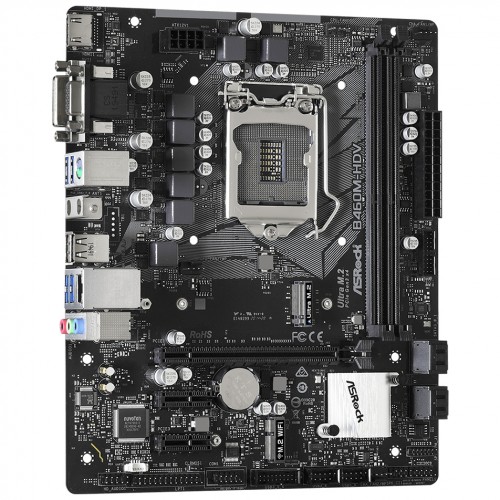

ASRock B460M-HDV ia a micro ATX solid capacitor designed with 10th Gen processor supported dual channel DDR4 maximum 64GB memory motherboard that Supports Intel Optane memory technology and Intel Optane storage technology which redefines a new standard of high performance and responsiveness. The PCIe Gen3 x4 Ultra M.2 interface enchances data transfer speed up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Along the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. ASRock Full Spike Protection includes various technologies to prevent user’s motherboard components from being damaged by these unexpected voltage spikes. Pure black PCB appearance gives the motherboard a more mysterious touch. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. It is equipped with a D-Sub + DVI-D + HDMI combo where HDMI port supports 4K resolution. the header provides a maximum of 2A power for supporting the most popular water pumps.
