| Basic Information | ||
| Others | Dust Filter: Front / Left Side / Bottom | |
| Case Features | ||
| Cooling System | MULTI-DIRECTIONAL AIR INTAKE AND MASSIVE AIRFLOW | |
| Dimension | 485 x 241 x 504mm(DWH) | |
| Drive Bays | 3.5" / 2.5": Normal M/B: 3/3 M-ATX Back Connect: 3/3 ATX Back Connect: 2/2 2.5": Normal M/B: 2 M-ATX Back Connect: 1 ATX Back Connect: 1 |
|
| Expansion Slots | 7 | |
| Fan Support | Top: 3 x 120 / 2 x 140mm Side: 3 x 120mm Power Supply Shroud: 3 x 120mm Rear: 1 x 120 / 1 x 140mm |
|
| Front Panel | Tempered Glass | |
| I/O Port | Power, LED Control Button, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack | |
| Material | Steel + Plastic + Glass | |
| Maximum CPU Cooler Height | ≤ 180mm | |
| Maximum Graphics Card Length | ≤ 450mm (When overall AIO thickness > 52mm, the length of the graphics card is limited to 280mm.) |
|
| Maximum PSU Length | (Include cable) ≤ 210mm | |
| Motherboard Support | E-ATX (≤ 272mm), ATX, M-ATX, ITX | |
| Pre- Installed Fans | 3 x 120mm ARGB PWM reverse fans on right side 1 x 140mm ARGB PWM fan in rear |
|
| PSU | Not Included | |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360mm Side: 120 / 240 / 360mm Rear: 120 / 140mm |
|
| Side Panel | Tempered glass | |
| Tempered Glass Panel | 4mm Tempered Glass | |
| Weight | 11.7Kg | |
| General | ||
| Type | Mid Tower | |
| Physical Specification | ||
| Color(s) | Black | |
| WARRANTY INFORMATION | ||
| Warranty | No Warranty | |

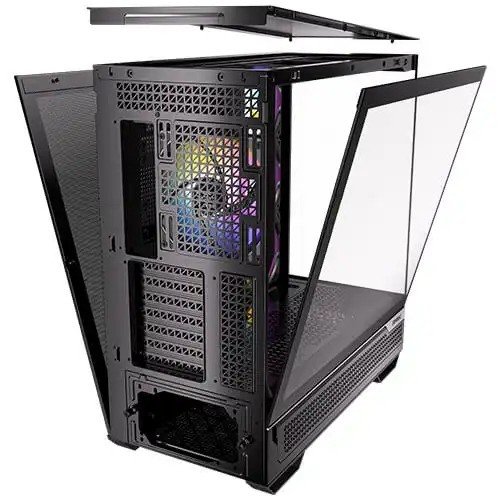

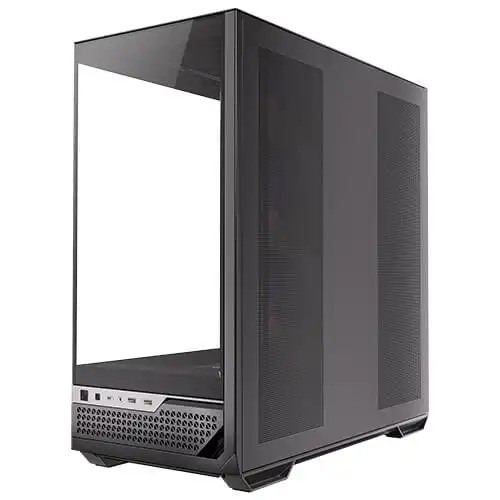

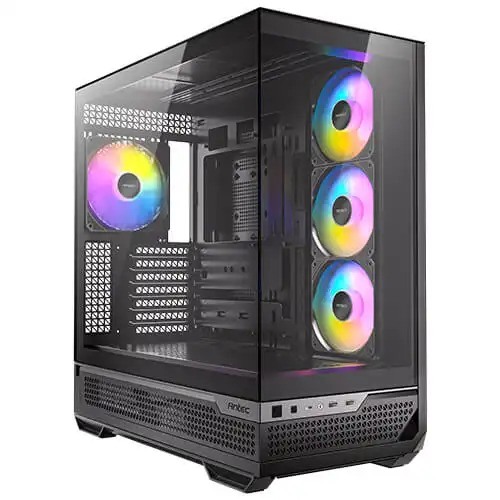

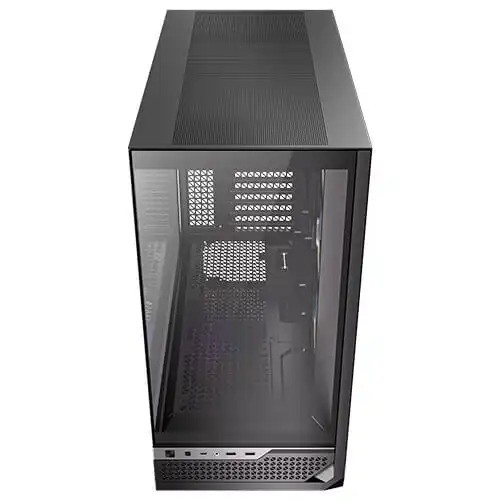

Antec C7 BK ARGB CONSTELLATION SERIES E-ATX Mid-Tower Gaming Casing
The Antec C7 BK ARGB Constellation Series E-ATX Mid-Tower Gaming Case is a premium chassis designed to combine futuristic aesthetics with high-performance functionality.
Key Features:
Sci-Fi Design with Panoramic 270° View: The case features seamless tempered glass front and side panels, offering an expansive view of the internal components, ideal for showcasing your build.
Vertical Cooling Layout: Engineered for optimal airflow, the C7 supports up to 10 fans, facilitating a bottom-to-top vertical airflow system to maintain optimal temperatures during intensive tasks.
Comprehensive Radiator Support: The chassis accommodates simultaneous installation of two 360mm radiators on the top and side, catering to advanced liquid cooling solutions for high-performance setups.
ARGB Lighting System: Equipped with pre-installed ARGB PWM fans (three 120mm reverse fans and one 140mm fan), the case offers customizable lighting effects, enhancing the visual appeal of your system.
Specifications:
Dimensions: 485mm (D) x 241mm (W) x 504mm (H)
Form Factor: Mid-Tower
Materials: Steel, Plastic, and 4mm Tempered Glass
Motherboard Support: E-ATX (up to 272mm), ATX, Micro-ATX, Mini-ITX
Drive Bays:
3.5"/2.5" Combo Bays: Up to 3
2.5" Bays: Up to 2
Expansion Slots: 7
Front I/O Ports:
2 x USB 3.0
1 x USB Type-C 10Gbps
Headphone/Mic Combo Jack
Power and LED Control Buttons
Cooling Support:
Fan Support:
Top: 3 x 120mm or 2 x 140mm
Side: 3 x 120mm
Bottom: 3 x 120mm
Rear: 1 x 140mm
Radiator Support:
Top: Up to 360mm
Side: Up to 360mm
Rear: Up to 140mm
