| Case Features | ||
| Case Type | Mid Tower |
|
| Color | Black | |
| Drive Bays | 3.5" /2.5": 2 / 1 2.5": 2 |
|
| Expansion Slots | 7 | |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm Power supply: 2 x 120mm Rear: 1 x 120mm |
|
| Front Ports | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO | |
| I/O Port | Power, Reset, USB 3.0 x 1, USB 2.0 x 2, MIC, HD-AUDIO |
|
| Material | Steel+Plastic | |
| Maximum CPU Cooler Height | ≤ 155mm |
|
| Maximum Graphics Card Length | ≤ 270mm | |
| Maximum PSU Length | ≤ 170mm(with HDD) ≤ 295mm(without HDD) |
|
| Motherboard Support | ATX, Micro-ATX, ITX | |
| Pre- Installed Fans | 3 x 120 RGB fan in front 1 x 120 RGB fan in rear |
|
| PSU | Not Included |
|
| Radiator Support | Front: 120 / 140 / 240 / 280mm | |
| Side Panel | Tempered glass |
|
| Model | AX20 Elite | |
| Features | ||
| Weight | Net Weight: 4 Kgs Gross Weight: 4.71 Kgs |
|
| Physical Specifications | ||
| Dimensions (W x D x H) | 358 x 207 x 451mm (DWH) | |
| WARRANTY INFORMATION | ||
| Warranty | No Warranty | |

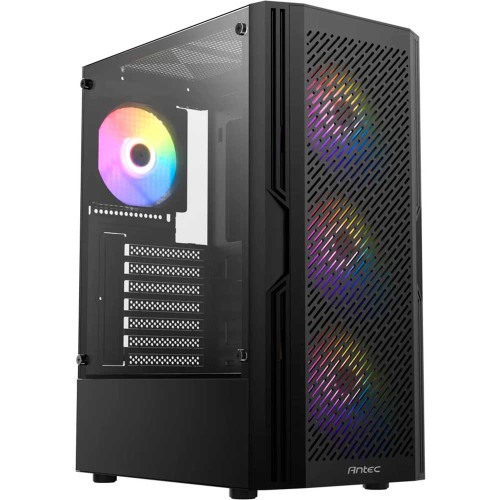

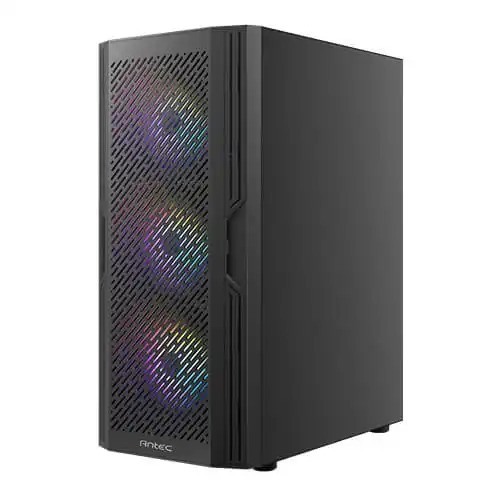

The Antec AX20 Elite Mid-Tower ATX Gaming Case is a striking blend of style and functionality designed for gamers and PC enthusiasts. Featuring a sleek, modern design with a tempered glass side panel, this case showcases your high-performance components in an eye-catching manner. The front panel is adorned with an intricate mesh design that not only enhances the case's aesthetics but also optimizes airflow to keep your system cool during intense gaming sessions. Inside, the AX20 Elite offers ample space for expansion with support for ATX, micro-ATX, and mini-ITX motherboards. It includes multiple drive bays, accommodating up to two 3.5-inch HDDs and two 2.5-inch SSDs, allowing for a customizable storage setup. The case supports up to six fans, with positions for both intake and exhaust, ensuring superior cooling performance. Additionally, it features cable management options to keep your build tidy and organized.Built with durability in mind, the Antec AX20 Elite is constructed from high-quality materials that ensure a long-lasting, robust chassis. Whether you’re a hardcore gamer or a casual builder, this case provides the versatility and cooling necessary for an optimal gaming experience. The Antec AX20 Elite Mid-Tower ATX Gaming Case offers a range of features designed to enhance both performance and aesthetics:
Tempered Glass Side Panel: Showcases your internal components with a clear view, adding a touch of elegance to your setup.

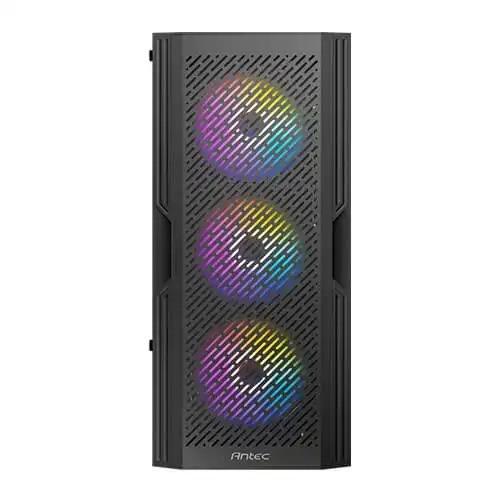

Mesh Front Panel: Provides excellent airflow and cooling while adding a modern, aggressive look to the case.
Versatile Motherboard Support: Compatible with ATX, micro-ATX, and mini-ITX motherboards, offering flexibility for various build configurations.
Cooling Options: Supports up to six fans with pre-installed positions for both intake and exhaust, ensuring effective cooling of your components. It can also accommodate large radiators for advanced liquid cooling setups.

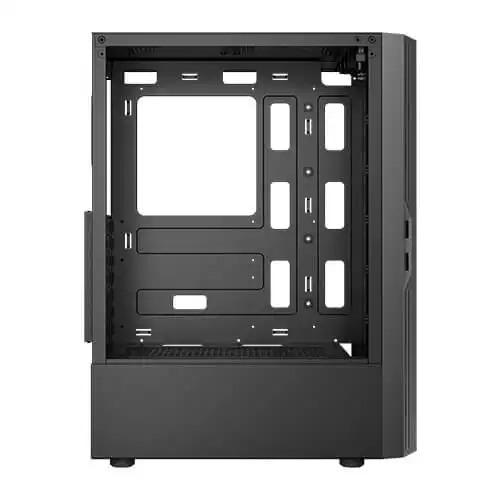

Spacious Interior: Includes multiple drive bays for up to two 3.5-inch HDDs and two 2.5-inch SSDs, allowing for ample storage expansion.
Cable Management: Features cable routing holes and tie-down points to keep cables organized and improve airflow within the case.
Tool-Free Drive Installation: Simplifies the process of installing drives, reducing build time and effort.

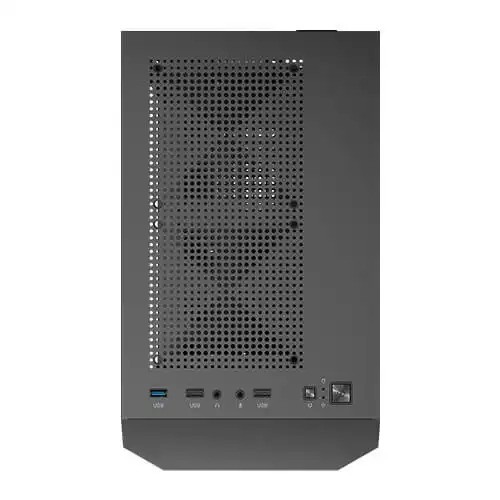

Front I/O Ports: Equipped with USB 3.0, USB 2.0, and audio ports for convenient access to essential connections.
Overall, the Antec AX20 Elite combines practical functionality with a sleek design, making it a great choice for gamers and PC builders looking for a reliable and stylish case.
