Product code | 1232 |
Brand |
ASUS |
Product model | ASUS PRIME A320M-E |
Warranty | 03 years |
Total Reviews |
Based on 1 reviews. - Write a review |
TBA
Out Of Stock
BASIC INFORMATION | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
Basic Information | |
Chipset | AMD A320 |
CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors |
Memory | |
Slots | PCI: 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors: 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset 2 x PCIe 2.0 x1 M.2 Socket 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
Memory | Type: Dual Channel Memory Architecture Slots: 2 Supported Memory: 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Maximum Memory: 64GB for 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 32GB for AMD 7th Generation A-Series/Athlon X4 Processors |
Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
Graphics | |
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
Connector & Ports | |
HDMI | 1 x HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz |
LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
USB Port | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) AMD A320 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
Others | |
Special Features | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
WARRANTY INFORMATION | |
Manufacturing Warranty | 03 years |

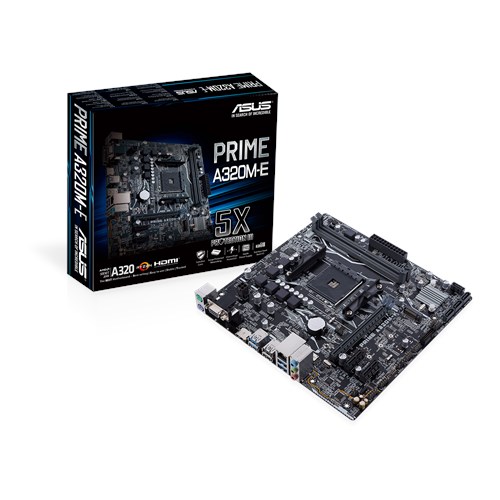

ASUS PRIME A320M-E AMD AM4 UATX MOTHERBOARD
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for ASUS PRIME A320M-E. ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. ASUS PRIME A320M-E motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand. SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way. The superior compatibility ofASUS PRIME A320M-E is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences. ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement ASUS PRIME A320M-E, so you can complete your custom motherboard build with confidence! ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment. With DDR4, you'll accelerate memory frequencies up to an incredible to 3200MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility. Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise - and with Prime A320 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization! Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Features
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for audio trace paths
- Native M.2: Lightning-fast storage speeds
- Onboard USB 3.1: Latest connectivity for ultrafast 10Gbps transfers
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Quick Compare
Product Details | ||||
Product | ASUS PRIME A320M-E AMD AM4 UATX MOTHERBOARD | GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor | GIGABYTE H310M S2H ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD | BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard |
Image | ||||
Price | |
|
|
|
Model | ASUS PRIME A320M-E | GIGABYTE GA-J1800M-D3P | H310M S2H | A520MH DDR4 |
Brand | ASUS | Gigabyte | Gigabyte | Biostar |
Availability | Out Of Stock | In Stock | In Stock | In Stock |
Rating | Based on 1 reviews. |
Based on 2 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
|
|
|
|
Product List
Best ASUS (RYZEN) Motherboard Price List 2024 | Price |
Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard |
12,790৳ 13,300৳ |
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard |
9,500৳ 98,000৳ |
ASUS ROG STRIX X570-F GAMING ATX MOTHERBOARD |
36,590৳ 38,500৳ |
Asus TUF GAMING A520M-PLUS WI-FI AM4 AMD Micro ATX Motherboard |
13,690৳ 14,740৳ |
ASUS ROG CROSSHAIR VIII FORMULA AMD X570 ATX GAMING MOTHERBOARD |
58,450৳ 60,700৳ |
Asus TUF GAMING B550M-E AMD AM4 ATX Motherboard |
14,450৳ 17,000৳ |
Asus TUF B450-PLUS GAMING AMD ATX Motherboard (China Version) |
10,950৳ 13,200৳ |
Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard |
35,500৳ 35,800৳ |
Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard |
37,000৳ 40,700৳ |
Asus TUF GAMING B650M-E WIFI AMD AM5 Micro-ATX Motherboard |
31,500৳ 34,650৳ |
What is the ASUS PRIME A320M-E AMD AM4 UATX MOTHERBOARD price in bd 2024?
The ASUS ASUS PRIME A320M-E PC-Components price in BD is not available at this moment. We will update the price soon. The ASUS ASUS PRIME A320M-E PC-Components is Out Of Stock now in our store (Call us to know about details of this product). And reviewed by 1 users. 55 customer buy this product From 11120 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order ASUS ASUS PRIME A320M-E online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
